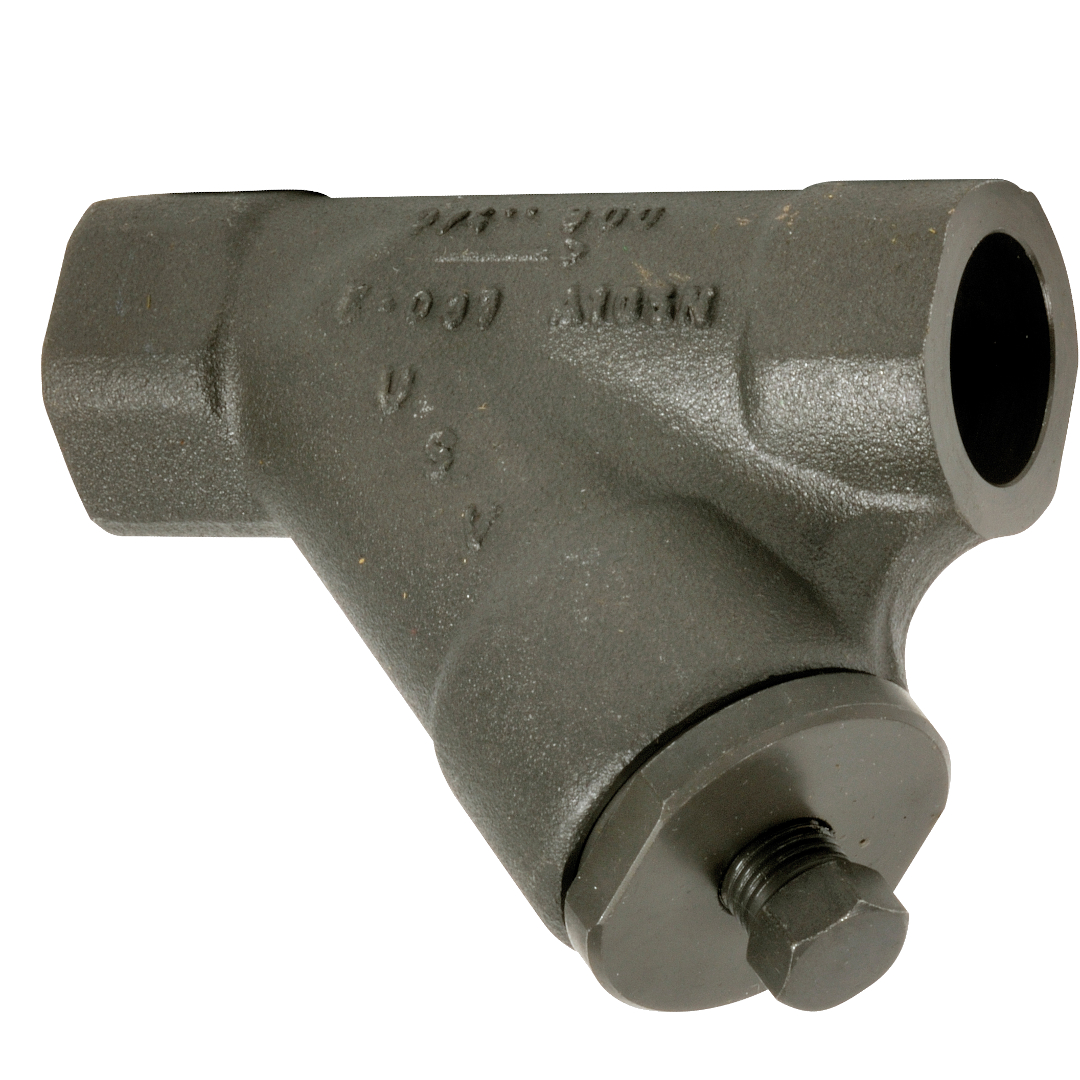

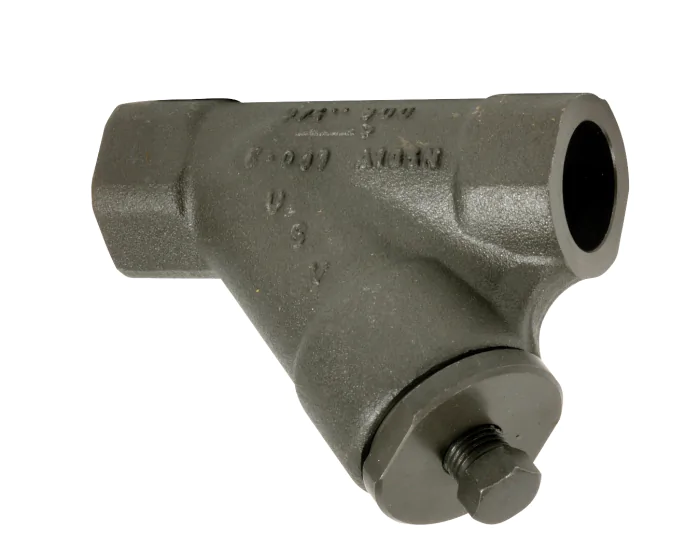

The Socket Welding forged steel A105N strainer, series 232, with removable stainless steel screen, Class 800, for oil, steam and high pressure industries.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| Option certificate 3.1 | Yes |
| Bonnet material | Carbon steel ASTM A105N |
| Construction standard | ASME B16.34 |
| CE risk category | III Module H |
| Tightness test standard | API 598 |
| Bonnet | Bolted |
| Steam | Yes |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| ATEX compatible | Yes |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 90.0 |
| Fluid | Hydrocarbons. gas |
| Body material | Carbon steel ASTM A105 N |
| Bore | Standard |
| PS (bar) | 136 |
| Connections | Welding SW |
| Screen (mesh) | 8/10° |
| TS max (°C) | 425 |
| TS min (°C) | -29 |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| CE | Yes |
| Main product colour | Black |
| Filter design | Y |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Welding SW Carbon steel ASTM A105 N Standard DN8 - 1/4'' | 232008 | S1007342 |
€47.61
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A105 N Standard DN10 - 3/8'' | 232010 | S1007343 |
€47.61
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A105 N Standard DN15 - 1/2'' | 232015 | S1007344 |
€47.61
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A105 N Standard DN20 - 3/4'' | 232020 | S1007345 |
€57.63
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A105 N Standard DN25 - 1'' | 232025 | S1007346 |
€86.91
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A105 N Standard DN32 - 1''1/4 | 232032 | S1007347 |
€197.66
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A105 N Standard DN40 - 1''1/2 | 232040 | S1007348 |
€197.66
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A105 N Standard DN50 - 2'' | 232050 | S1007349 |
€328.60
(excl. btw)
|
add to cart |
